S11312.0
S11312.0

S11312.0

UGC DOR7648619
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.39 CAD - $90.39 CAD
$90.39 CAD
$90.39 CAD - $90.39 CAD
$90.39 CAD

Vendu en lots de : 1

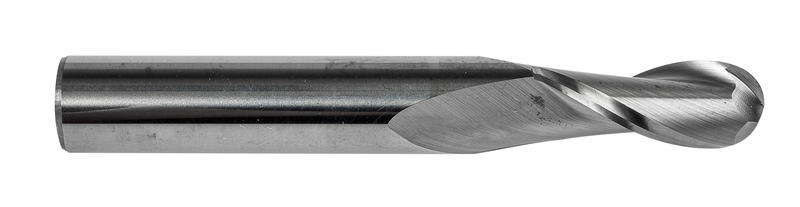

Fraise carbure monobloc deux tailles à bout hémisphérique de longueur normale, de diamètre 12mm avec une longueur de coupe de 25mm, une longueur totale de 75mm et un rayon de 6mm à profil complet, selon le standard DORMER avec une queue cylindrique de 12mm, en carbure monobloc, finition brillante, hélice à 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S11312.0
GradeLumineux
Product Number7648619
Product FamilyS113
Insert Geometry
Corner Radius — in (RE)0.236"
Corner Radius — mm (RE)6 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648619
EAN7320760846667
File Type Download
S11312.0 — Line Drawing PDF Download
