S11316.0
S11316.0

S11316.0

UGC DOR7648620
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$154.87 CAD - $154.87 CAD
$154.87 CAD
$154.87 CAD - $154.87 CAD
$154.87 CAD

Vendu en lots de : 1

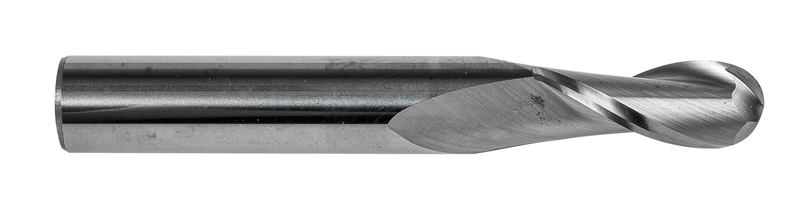

Fraise à l'hélice à bout sphérique de longueur normale, 2 dents, diamètre de 16 mm avec une longueur de coupe de 32 mm, une longueur totale de 88 mm et un rayon de profil complet de 8 mm, selon la norme DORMER avec une queue cylindrique de 16 mm, en carbure monobloc avec une finition brillante, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S11316.0
GradeLumineux
Product Number7648620
Product FamilyS113

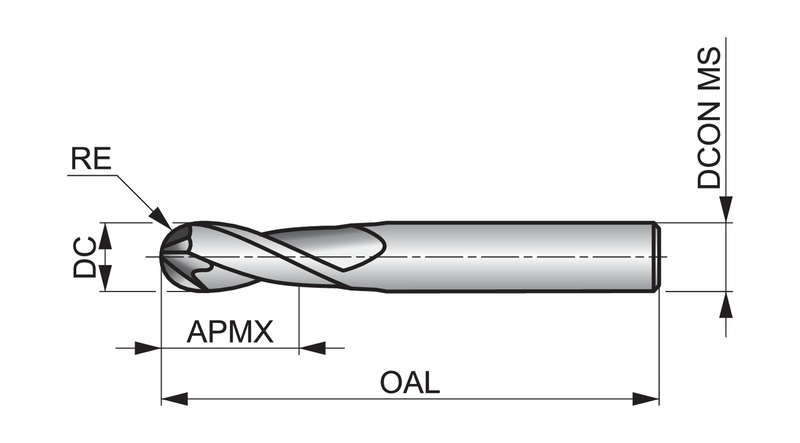

Insert Geometry
Corner Radius — in (RE)0.315"
Corner Radius — mm (RE)8 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648620
EAN7320760846674
File Type Download
S11316.0 — Line Drawing PDF Download
