S11320.0
S11320.0

S11320.0

UGC DOR7648621
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$238.91 CAD - $238.91 CAD
$238.91 CAD
$238.91 CAD - $238.91 CAD
$238.91 CAD

Vendu en lots de : 1

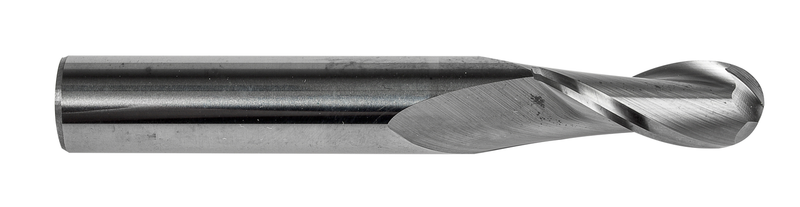

Fraise à lamer à bout sphérique de longueur normale, 2 dents, diamètre 20mm, longueur de coupe 38mm, longueur totale 100mm et rayon de profil complet 10mm, conforme à la norme DORMER avec une queue cylindrique 20mm, carbure monobloc finition brillante, hélice 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S11320.0
GradeLumineux
Product Number7648621
Product FamilyS113
Insert Geometry
Corner Radius — in (RE)0.394"
Corner Radius — mm (RE)10 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648621
EAN7320760846681
File Type Download
S11320.0 — Line Drawing PDF Download
