S2134.0
S2134.0

S2134.0

UGC DOR7648623
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.39 CAD - $29.39 CAD
$29.39 CAD
$29.39 CAD - $29.39 CAD
$29.39 CAD

Vendu en lots de : 1

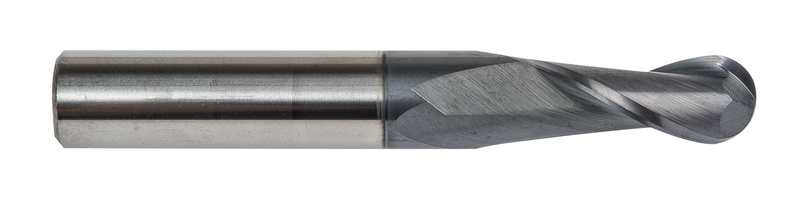

Fraise à lamer hémisphérique de longueur normale avec 2 arêtes de coupe, diamètre 4 mm avec 14 mm de longueur de coupe, 50 mm de longueur totale et un rayon de profil complet de 2 mm, selon la norme DORMER avec une queue cylindrique de 4 mm, carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage de copiage dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2134.0
GradeTiAlN
Product Number7648623
Product FamilyS213
Insert Geometry
Corner Radius — in (RE)0.079"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648623
EAN7320760846704
File Type Download
S2134.0 — Line Drawing PDF Download
