S2135.0
S2135.0

S2135.0

UGC DOR7648624
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.34 CAD - $31.34 CAD
$31.34 CAD
$31.34 CAD - $31.34 CAD
$31.34 CAD

Vendu en lots de : 1

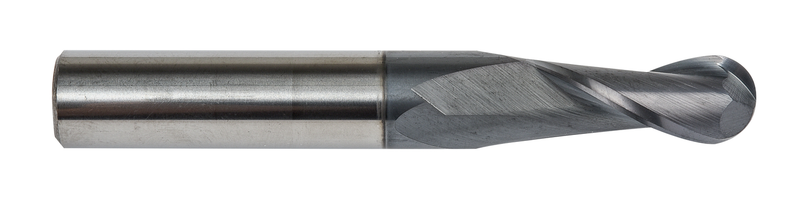

Fraise à l'extrémité sphérique de longueur standard, 2 dents, diamètre 5 mm avec 16 mm de longueur de coupe, 50 mm de longueur totale et 2,5 mm de rayon de profil complet, selon la norme DORMER avec une queue cylindrique de 5 mm, en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le copiage dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2135.0
GradeTiAlN
Product Number7648624
Product FamilyS213

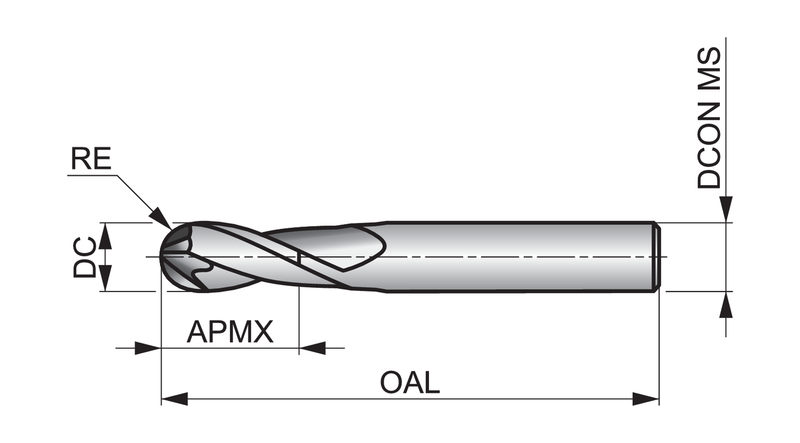

Insert Geometry
Corner Radius — in (RE)0.098"
Corner Radius — mm (RE)2.5 mm
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1969"
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648624
EAN7320760846711
File Type Download
S2135.0 — Line Drawing PDF Download
