S2136.0
S2136.0

S2136.0

UGC DOR7648625
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.06 CAD - $38.06 CAD
$38.06 CAD
$38.06 CAD - $38.06 CAD
$38.06 CAD

Vendu en lots de : 1

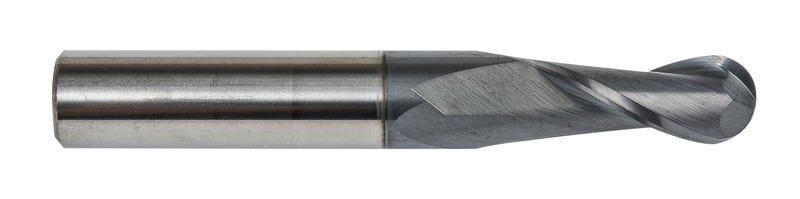

Fraise à l'hélice à bout sphérique de longueur normale avec 2 arêtes, diamètre 6mm avec 19mm de longueur de coupe, 63mm de longueur totale et 3mm de rayon de profil complet, selon la norme DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en dépouille dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2136.0
GradeTiAlN
Product Number7648625
Product FamilyS213
Insert Geometry
Corner Radius — in (RE)0.118"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648625
EAN7320760846728
File Type Download
S2136.0 — Line Drawing PDF Download
