S2137.0
S2137.0

S2137.0

UGC DOR7648626
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.61 CAD - $57.61 CAD
$57.61 CAD
$57.61 CAD - $57.61 CAD
$57.61 CAD

Vendu en lots de : 1

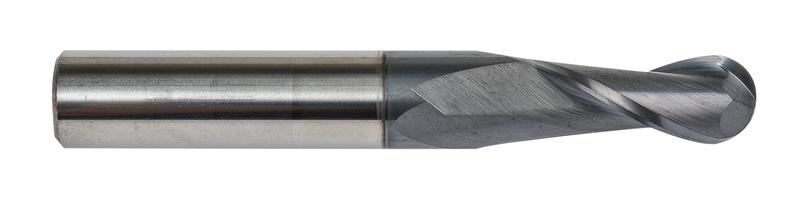

Fraise boule de longueur normale avec 2 arêtes de coupe, diamètre 7mm avec une longueur de coupe de 19mm, longueur totale de 63mm et un rayon de profil complet de 3.5mm, selon la norme DORMER avec une queue cylindrique de 8mm, carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2137.0
GradeTiAlN
Product Number7648626
Product FamilyS213
Insert Geometry
Corner Radius — in (RE)0.138"
Corner Radius — mm (RE)3.5 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648626
EAN7320760846735
File Type Download
S2137.0 — Line Drawing PDF Download
