S2138.0
S2138.0

S2138.0

UGC DOR7648627
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.97 CAD - $54.97 CAD
$54.97 CAD
$54.97 CAD - $54.97 CAD
$54.97 CAD

Vendu en lots de : 1

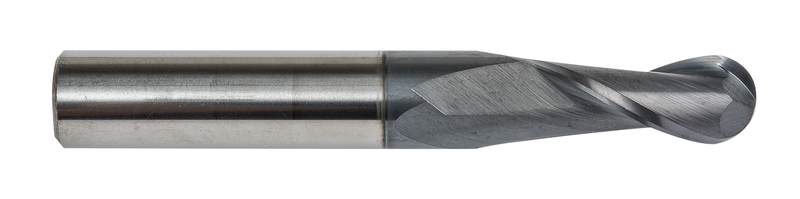

Fraise à l'extrémité sphérique de longueur standard, 2 dents, diamètre 8 mm, longueur de coupe 19 mm, longueur totale 63 mm et rayon de profil complet 4 mm, selon la norme DORMER avec une queue cylindrique de 8 mm, en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2138.0
GradeTiAlN
Product Number7648627
Product FamilyS213
Insert Geometry
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648627
EAN7320760846742
File Type Download
S2138.0 — Line Drawing PDF Download
