S21310.0
S21310.0

S21310.0

UGC DOR7648629
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.06 CAD - $75.06 CAD
$75.06 CAD
$75.06 CAD - $75.06 CAD
$75.06 CAD

Vendu en lots de : 1

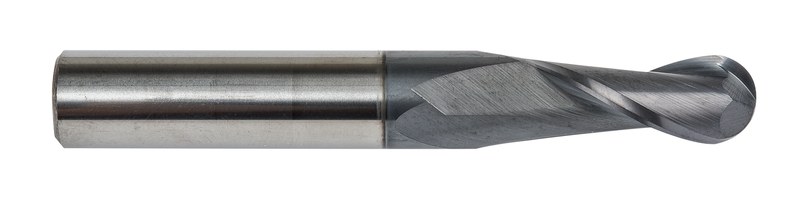

Fraise à l'extrémité sphérique de longueur standard, 2 dents, diamètre 10 mm avec une longueur de coupe de 22 mm, une longueur totale de 70 mm et un rayon de profil complet de 5 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S21310.0
GradeTiAlN
Product Number7648629
Product FamilyS213
Insert Geometry
Corner Radius — in (RE)0.197"
Corner Radius — mm (RE)5 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648629
EAN7320760846766
File Type Download
S21310.0 — Line Drawing PDF Download
