S1143/16
S1143/16

S1143/16

UGC DOR7648632
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.81 CAD - $41.81 CAD
$41.81 CAD
$41.81 CAD - $41.81 CAD
$41.81 CAD

Vendu en lots de : 1

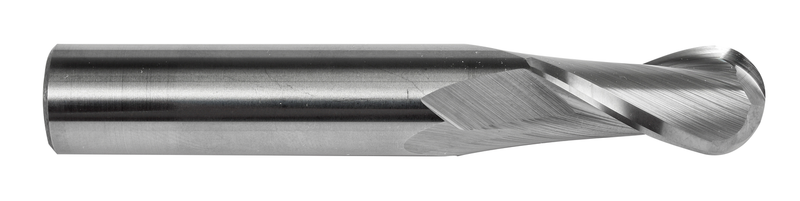

Fraise-boule à long rayon et 2 arêtes, diamètre 3/16 po avec 3/4 po de longueur de coupe, 2 1/2 po de longueur totale et 3/32 po de rayon de profil complet, selon la norme DORMER avec une tige cylindrique de 3/16 po, en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte malléable, ductile et à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1143/16
GradeLumineux
Product Number7648632
Product FamilyS114

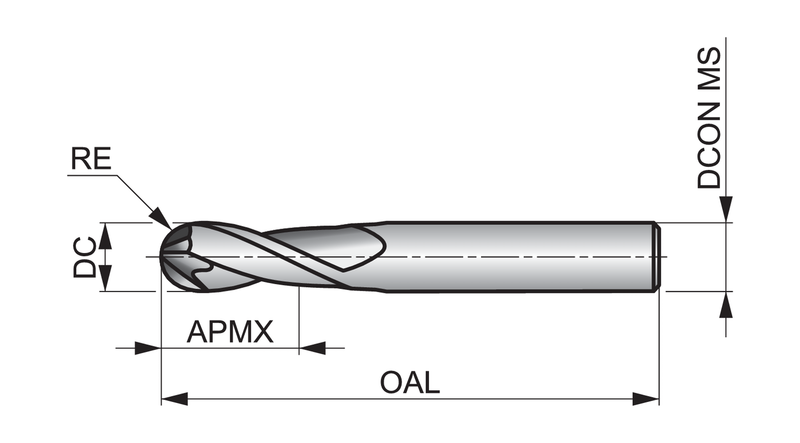

Insert Geometry
Corner Radius — in (RE)0.094"
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648632
EAN7320760846797
File Type Download
S1143/16 — Line Drawing PDF Download
