S1151/4
S1151/4

S1151/4

UGC DOR7648640
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.37 CAD - $49.37 CAD
$49.37 CAD
$49.37 CAD - $49.37 CAD
$49.37 CAD

Vendu en lots de : 1

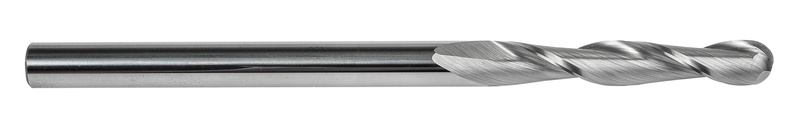

Fraise boule extra-longue 2 tailles, diamètre 1/4" avec longueur de coupe de 1.1/2", longueur totale de 4" et rayon de profil complet de 1/8", conforme à la norme DORMER, avec queue cylindrique de 1/4", en carbure monobloc finition brillante, hélice à 30° pour copiage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1151/4
GradeLumineux
Product Number7648640
Product FamilyS115
Insert Geometry
Corner Radius — in (RE)0.125"
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648640
EAN7320760846872
File Type Download

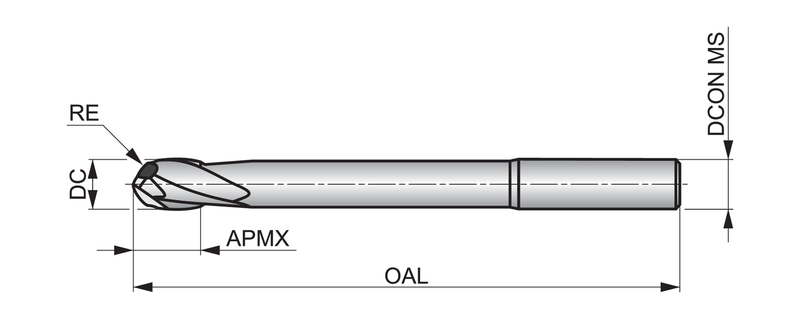

S1151/4 — Line Drawing PDF Download
