S1155/16
S1155/16

S1155/16

UGC DOR7648641
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.19 CAD - $68.19 CAD
$68.19 CAD
$68.19 CAD - $68.19 CAD
$68.19 CAD

Vendu en lots de : 1

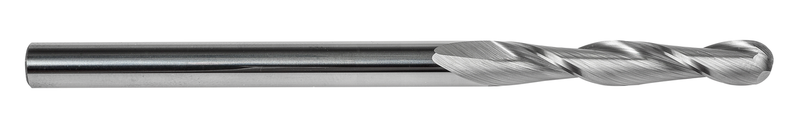

Fraise à l'extrémité sphérique série extra longue à 2 dents, diamètre 5/16" avec une longueur de coupe de 1,5/8", une longueur totale de 4" et un rayon de profil complet de 5/32", selon la norme DORMER avec une queue cylindrique de 5/16", en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1155/16
GradeLumineux
Product Number7648641
Product FamilyS115

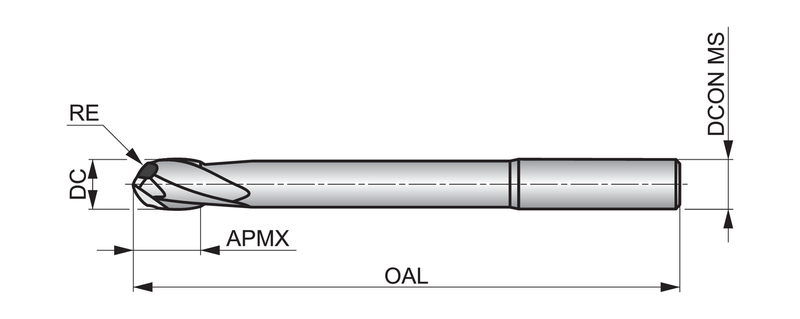

Insert Geometry
Corner Radius — in (RE)0.156"
Depth of Cut Max — mm (APMX)41.28 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648641
EAN7320760846889
File Type Download
S1155/16 — Line Drawing PDF Download
