S2155/16
S2155/16

S2155/16

UGC DOR7648647
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.21 CAD - $87.21 CAD
$87.21 CAD
$87.21 CAD - $87.21 CAD
$87.21 CAD

Vendu en lots de : 1

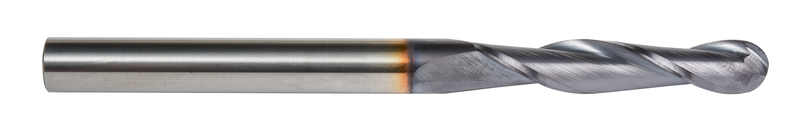

Fraise à l'extrémité sphérique de la série extra longue à 2 cannelures, diamètre de 5/16" avec une longueur de coupe de 1,5/8", une longueur totale de 4" et un rayon de profil complet de 5/32", selon la norme DORMER avec une queue unie de 5/16", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2155/16
GradeTiAlN
Product Number7648647
Product FamilyS215

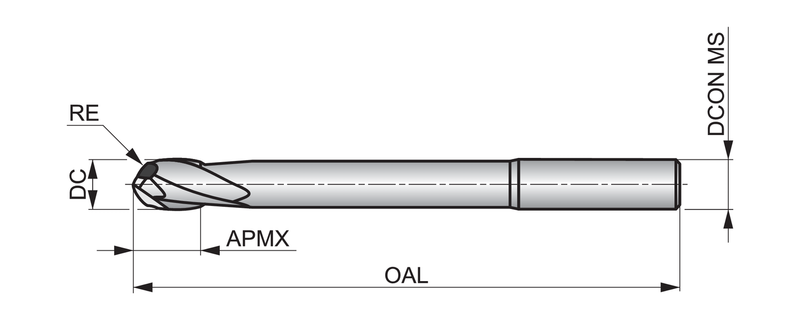

Insert Geometry
Corner Radius — in (RE)0.156"
Depth of Cut Max — mm (APMX)41.28 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648647
EAN7320760846940
File Type Download
S2155/16 — Line Drawing PDF Download
