S2153/8
S2153/8

S2153/8

UGC DOR7648648
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$115.76 CAD - $115.76 CAD
$115.76 CAD
$115.76 CAD - $115.76 CAD
$115.76 CAD

Vendu en lots de : 1

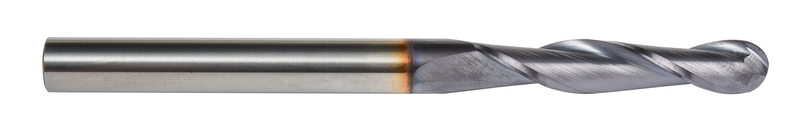

Fraise à l'extrémité sphérique série extra longue avec 2 cannelures, diamètre 3/8" avec une longueur de coupe de 1,3/4", une longueur totale de 4" et un rayon de profil complet de 3/16", selon la norme DORMER avec une queue cylindrique de 3/8", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage en copie dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2153/8
GradeTiAlN
Product Number7648648
Product FamilyS215

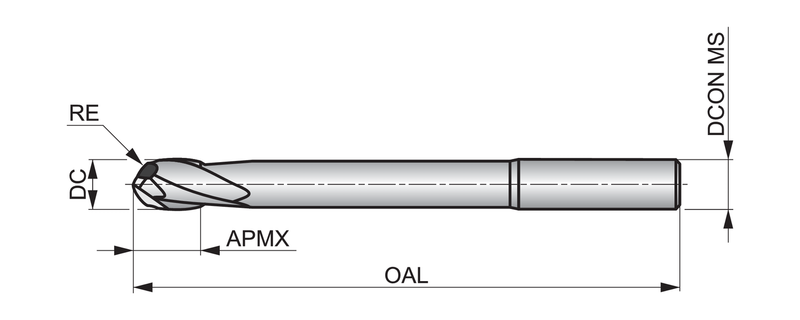

Insert Geometry
Corner Radius — in (RE)0.188"
Depth of Cut Max — mm (APMX)44.45 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648648
EAN7320760846957
File Type Download
S2153/8 — Line Drawing PDF Download
