S2151/2
S2151/2

S2151/2

UGC DOR7648649
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$178.66 CAD - $178.66 CAD
$178.66 CAD
$178.66 CAD - $178.66 CAD
$178.66 CAD

Vendu en lots de : 1

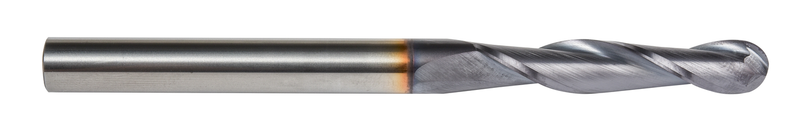

Fraise à l'extrémité sphérique série extra longue avec 2 taillants, diamètre 1/2" avec longueur de coupe de 3", longueur totale de 6" et rayon de profil complet de 1/4", selon la norme DORMER avec une queue cylindrique de 1/2", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le copiage dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2151/2
GradeTiAlN
Product Number7648649
Product FamilyS215

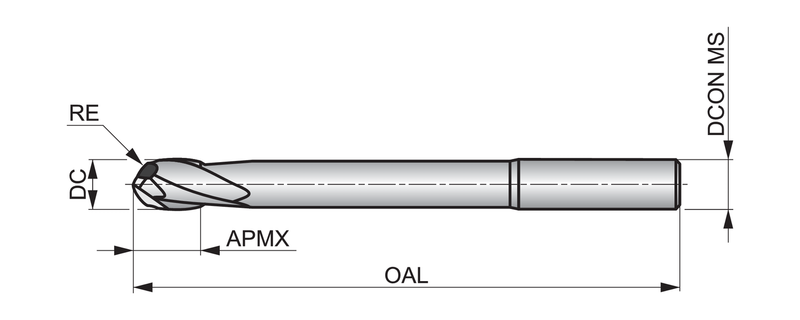

Insert Geometry
Corner Radius — in (RE)0.25"
Depth of Cut Max — mm (APMX)76.2 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648649
EAN7320760846964
File Type Download
S2151/2 — Line Drawing PDF Download
