S1211/8
S1211/8

S1211/8

UGC DOR7648659
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.90 CAD - $13.90 CAD
$13.90 CAD
$13.90 CAD - $13.90 CAD
$13.90 CAD

Vendu en lots de : 1

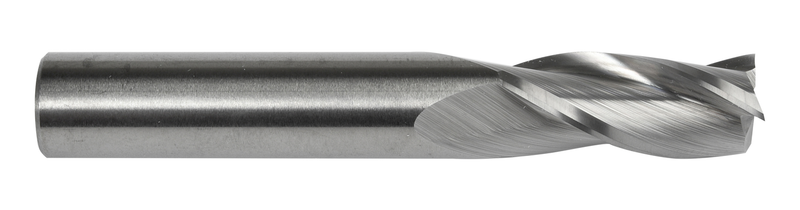

Fraise en bout longueur normale à 3 dents, diamètre 1/8" avec une longueur de coupe de 1/2" et une longueur totale de 1.1/2", selon la norme DORMER avec une queue cylindrique de 1/8", en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage d'épaulements et le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1211/8
GradeLumineux
Product Number7648659
Product FamilyS121
Insert Geometry
Depth of Cut Max — mm (APMX)12.7 mm
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648659
EAN7320760847060
File Type Download

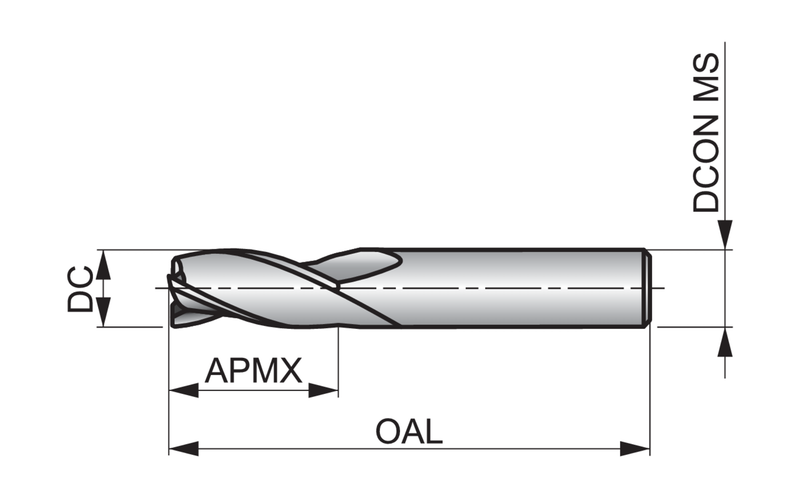

S1211/8 — Line Drawing PDF Download
