S1215/32
S1215/32

S1215/32

UGC DOR7648660
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.51 CAD - $21.51 CAD
$21.51 CAD
$21.51 CAD - $21.51 CAD
$21.51 CAD

Vendu en lots de : 1

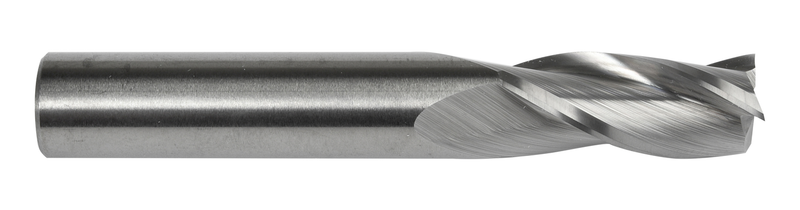

Fraise en bout de longueur standard à 3 dents, diamètre 5/32" avec une longueur de coupe de 9/16" et une longueur totale de 2", selon la norme DORMER avec une queue cylindrique de 3/16", en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1215/32
GradeLumineux
Product Number7648660
Product FamilyS121
Insert Geometry

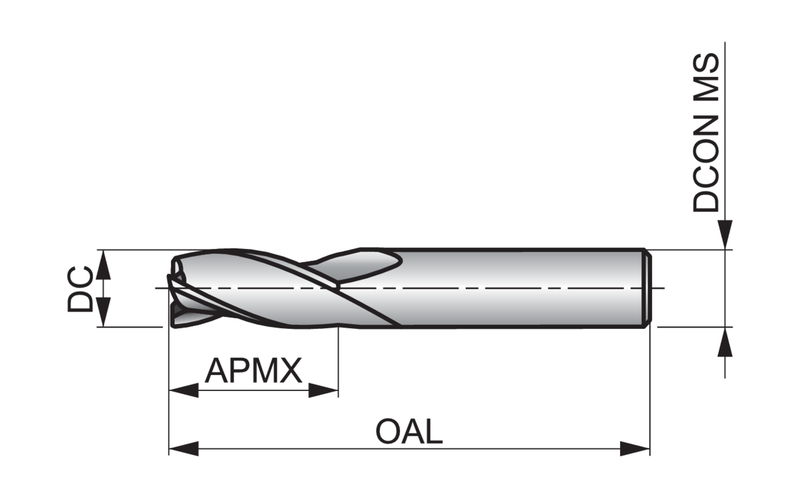

Depth of Cut Max — mm (APMX)14.29 mm
Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648660
EAN7320760847077
File Type Download
S1215/32 — Line Drawing PDF Download
