S1213/16
S1213/16

S1213/16

UGC DOR7648661
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.37 CAD - $19.37 CAD
$19.37 CAD
$19.37 CAD - $19.37 CAD
$19.37 CAD

Vendu en lots de : 1

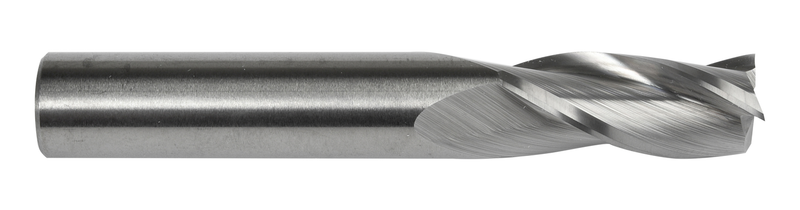

Fraise en bout longueur normale à 3 dents, diamètre 3/16" avec longueur de coupe 5/8" et longueur totale 2", selon la norme DORMER avec une queue cylindrique de 3/16", en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage d'épaulement et le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1213/16
GradeLumineux
Product Number7648661
Product FamilyS121
Insert Geometry
Depth of Cut Max — mm (APMX)15.88 mm

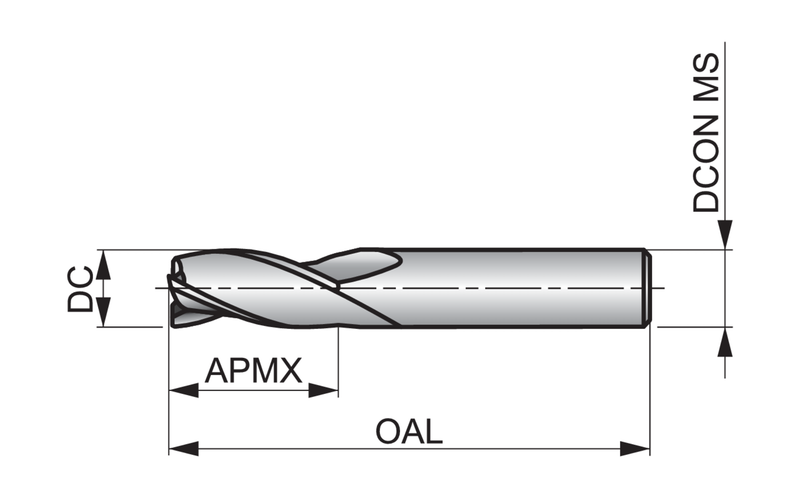

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648661
EAN7320760847084
File Type Download
S1213/16 — Line Drawing PDF Download
