S2211/8
S2211/8

S2211/8

UGC DOR7648668
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.69 CAD - $17.69 CAD
$17.69 CAD
$17.69 CAD - $17.69 CAD
$17.69 CAD

Vendu en lots de : 1

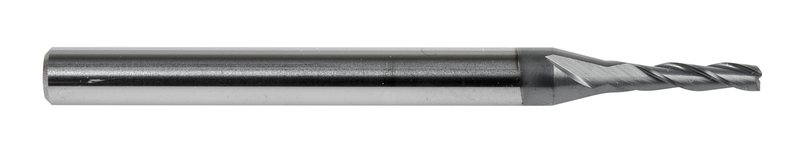

Fraise en bout de longueur normale à 3 dents, diamètre 1/8" avec une longueur de coupe de 1/2" et une longueur totale de 1,1/2", selon la norme DORMER avec une queue cylindrique de 1/8", en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2211/8
GradeTiAlN
Product Number7648668
Product FamilyS221
Insert Geometry
Depth of Cut Max — mm (APMX)12.7 mm

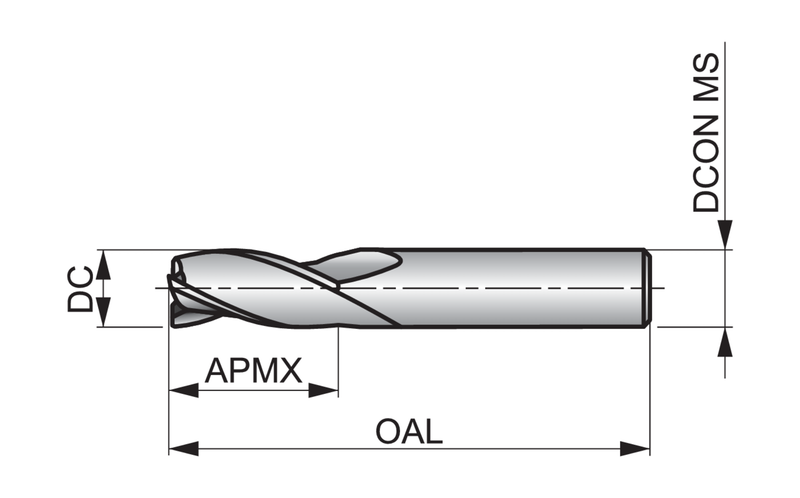

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648668
EAN7320760847152
File Type Download
S2211/8 — Line Drawing PDF Download
