S2215/32
S2215/32

S2215/32

UGC DOR7648669
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.37 CAD - $26.37 CAD
$26.37 CAD
$26.37 CAD - $26.37 CAD
$26.37 CAD

Vendu en lots de : 1

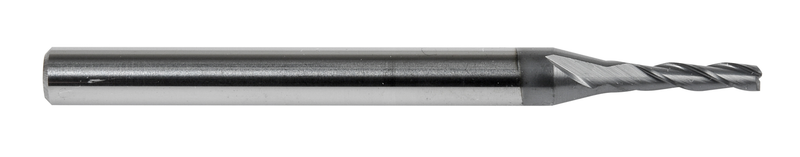

Fraise en bout de longueur normale, 3 dents, diamètre 5/32" avec une longueur de coupe de 9/16" et une longueur totale de 2", selon la norme DORMER avec un corps cylindrique de 3/16", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite sphéroïdal compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2215/32
GradeTiAlN
Product Number7648669
Product FamilyS221

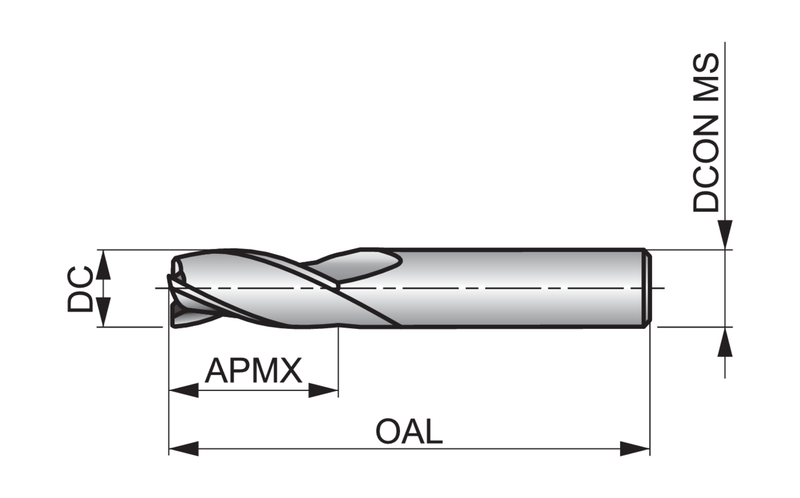

Insert Geometry
Depth of Cut Max — mm (APMX)14.29 mm
Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648669
EAN7320760847169
File Type Download
S2215/32 — Line Drawing PDF Download
