S2211/4
S2211/4

S2211/4

UGC DOR7648671
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.40 CAD - $33.40 CAD
$33.40 CAD
$33.40 CAD - $33.40 CAD
$33.40 CAD

Vendu en lots de : 1

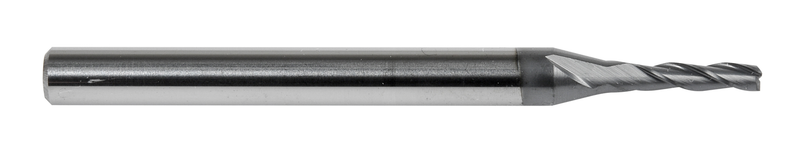

Fraise en bout longueur standard à 3 dents, diamètre 1/4" avec une longueur de coupe de 3/4" et une longueur totale de 2.1/2", conforme à la norme DORMER avec une queue cylindrique de 1/4", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le surfaçage en bout et l'usinage de rainures dans l'acier et l'acier moulé, l'acier inoxydable et la fonte malléable, ductile et à graphite compacté

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2211/4
GradeTiAlN
Product Number7648671
Product FamilyS221
Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)3
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648671
EAN7320760847183
File Type Download

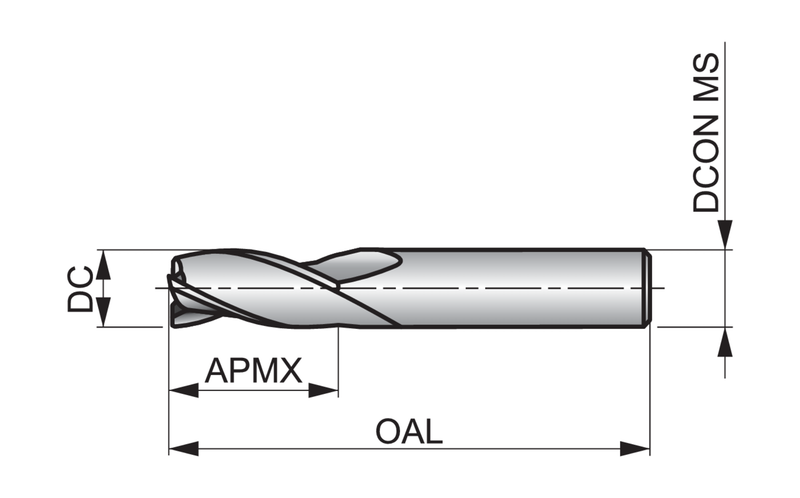

S2211/4 — Line Drawing PDF Download
