S223HA3/16XR.030
S223HA3/16XR.030

S223HA3/16XR.030

UGC DOR7648678
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.31 CAD - $37.31 CAD
$37.31 CAD
$37.31 CAD - $37.31 CAD
$37.31 CAD

Vendu en lots de : 1

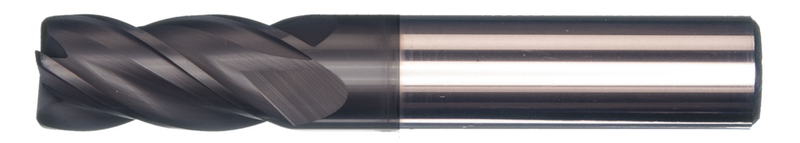

Fraise en bout à rayon d'angle de longueur normale, 4 dents, diamètre 3/16" avec longueur de coupe 7/16", longueur totale 2" et rayon de coin 0,03", selon la norme DORMER avec une queue cylindrique 3/16", carbure monobloc avec revêtement AlTiN, hélice inégale pour fraisage d'épaulement, plongée, plongée progressive, ramping, fraisage hélicoïdal et fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les alliages à haute température, la fonte trempée, la fonte durcie et l'acier trempé <55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S223HA3/16XR.030
GradeAlTiN
Product Number7648678
Product FamilyS223HA

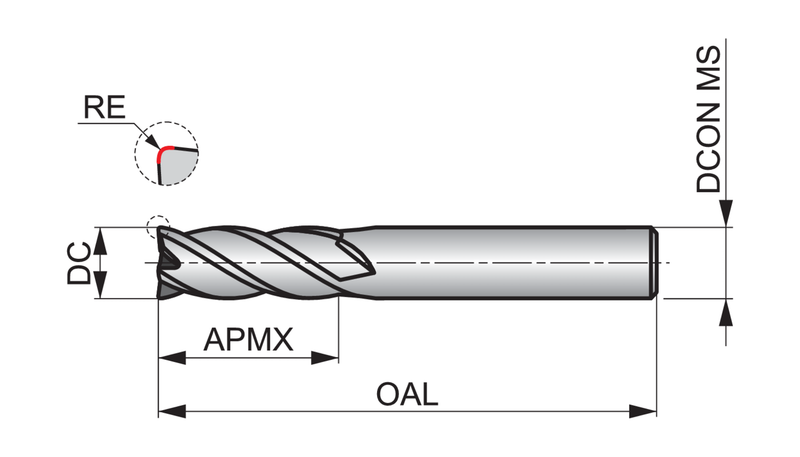

Insert Geometry
Corner Radius — in (RE)0.03"
Depth of Cut Max — mm (APMX)11.11 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number7648678
EAN7320760847251
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
S223HA3/16XR.030 — Line Drawing PDF Download
