S223HA1/2XR.030
S223HA1/2XR.030

S223HA1/2XR.030

UGC DOR7648687
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$112.06 CAD - $112.06 CAD
$112.06 CAD
$112.06 CAD - $112.06 CAD
$112.06 CAD

Vendu en lots de : 1

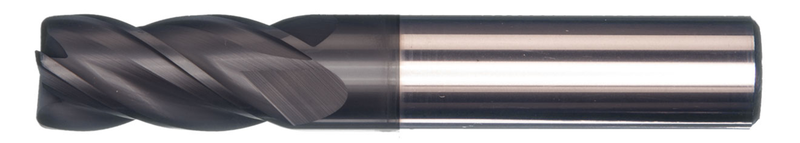

Fraise en bout à rayon de coin de longueur normale à 4 dents, diamètre 1/2" avec une longueur de coupe de 1,1/4", une longueur totale de 3" et un rayon de coin de 0,03", selon la norme DORMER avec une queue cylindrique de 1/2", en carbure monobloc avec revêtement AlTiN, hélice inégale pour le fraisage d'épaulement, le plongement, le fraisage en plongée progressive, le ramping, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les alliages à haute température, la fonte trempée, la fonte durcie et l'acier trempé <55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S223HA1/2XR.030
GradeAlTiN
Product Number7648687
Product FamilyS223HA

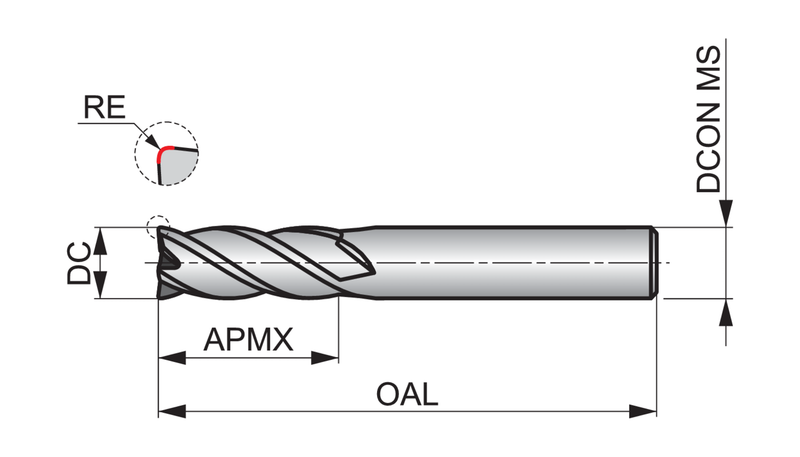

Insert Geometry
Corner Radius — in (RE)0.03"
Depth of Cut Max — mm (APMX)31.75 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number7648687
EAN7320760847343
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
S223HA1/2XR.030 — Line Drawing PDF Download
