S223HB3/4XR.060
S223HB3/4XR.060

S223HB3/4XR.060

UGC DOR7648716
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.47 CAD - $295.47 CAD
$295.47 CAD
$295.47 CAD - $295.47 CAD
$295.47 CAD

Vendu en lots de : 1

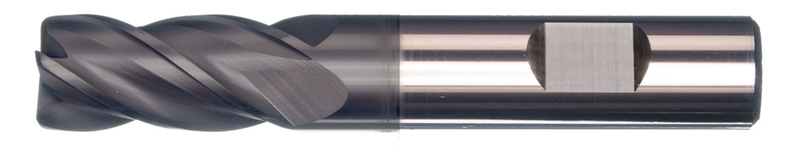

Fraise en bout à rayon de coin de longueur normale à 4 dents, diamètre 3/4" avec une longueur de coupe de 1,1/2", une longueur totale de 4" et un rayon de coin de 0,06", selon la norme DORMER avec une queue Weldon de 3/4", en carbure monobloc avec revêtement AlTiN, hélice inégale pour le fraisage d'épaulements, le plongement, le fraisage progressif par plongée, le fraisage en rampe, le fraisage hélicoïdal et le fraisage trochoïdal dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les alliages à haute température, la fonte trempée et l'acier trempé <55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S223HB3/4XR.060
GradeAlTiN
Product Number7648716
Product FamilyS223HB

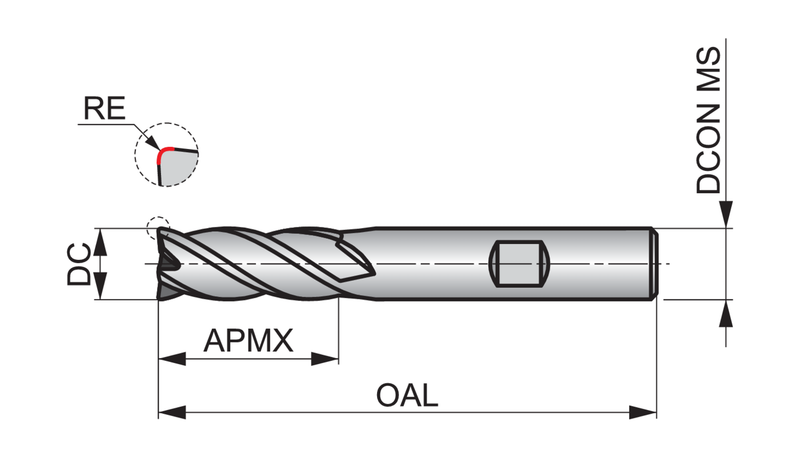

Insert Geometry
Corner Radius — in (RE)0.06"
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)4
Tool Information
ShankQueue cylindrique DIN 6535 HB
StandardNorme de travail
Reference Numbers
EDP Number7648716
EAN7320760847633
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
K — Cast Iron Usage principal
S — High Temperature Alloys Usage principal
H — Hardened Materials Usage principal
File Type Download
S223HB3/4XR.060 — Line Drawing PDF Download
