S1295/32
S1295/32

S1295/32

UGC DOR7648720
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.86 CAD - $52.86 CAD
$52.86 CAD
$52.86 CAD - $52.86 CAD
$52.86 CAD

Vendu en lots de : 1

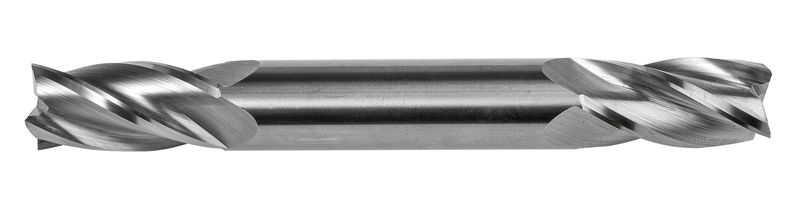

Fraise deux tailles, longueur normale, 4 dents, diamètre 5/32" avec une longueur de coupe de 7/16" et une longueur totale de 3", conforme à la norme DORMER avec un queue cylindrique de 3/8", en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage d'épaulement et le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1295/32
GradeLumineux
Product Number7648720
Product FamilyS129
Insert Geometry
Depth of Cut Max — mm (APMX)11.11 mm

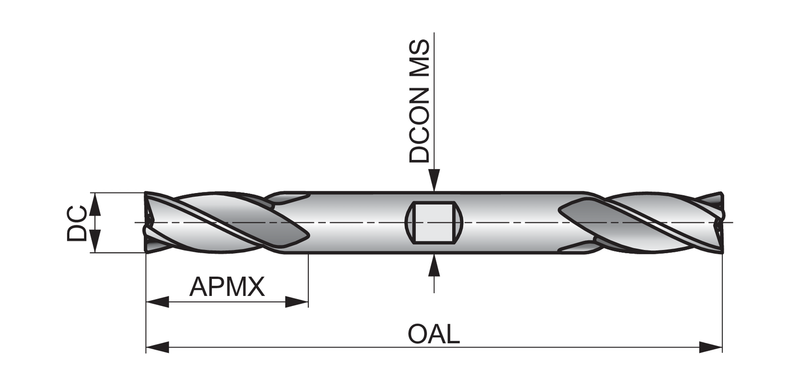

Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648720
EAN7320760847671
File Type Download
S1295/32 — Line Drawing PDF Download
