S1293/16
S1293/16

S1293/16

UGC DOR7648721
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.86 CAD - $52.86 CAD
$52.86 CAD
$52.86 CAD - $52.86 CAD
$52.86 CAD

Vendu en lots de : 1

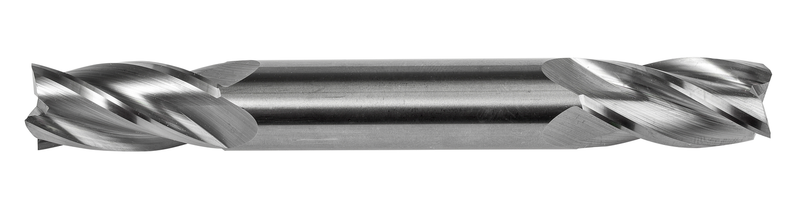

Fraise deux-tailles de longueur normale, 4 dents, diamètre 3/16" avec une longueur de coupe de 1/2" et une longueur totale de 3", conforme à la norme DORMER avec une queue cylindrique de 3/8", en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, nodulaire et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1293/16
GradeLumineux
Product Number7648721
Product FamilyS129

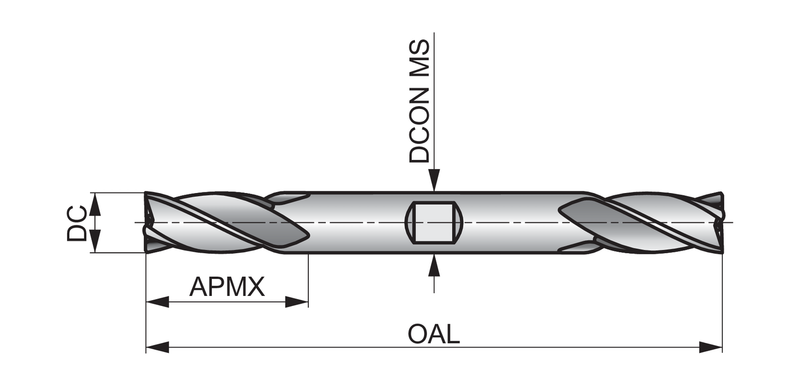

Insert Geometry
Depth of Cut Max — mm (APMX)12.7 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648721
EAN7320760847688
File Type Download
S1293/16 — Line Drawing PDF Download
