S1291/4
S1291/4

S1291/4

UGC DOR7648722
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.86 CAD - $52.86 CAD
$52.86 CAD
$52.86 CAD - $52.86 CAD
$52.86 CAD

Vendu en lots de : 1

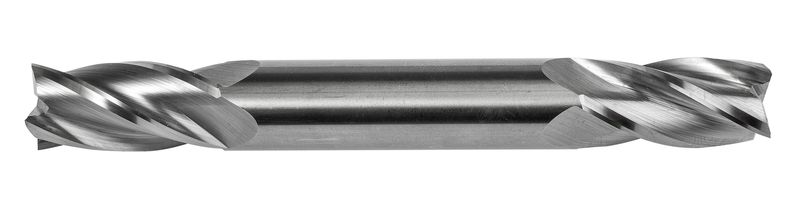

Fraise à deux coupes de longueur normale à 4 dents, diamètre 1/4" avec une longueur de coupe de 5/8" et une longueur totale de 3", selon la norme DORMER avec une queue cylindrique de 3/8", en carbure monobloc avec finition brillante, hélice de 30° pour le fraisage d'épaulement et le fraisage de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1291/4
GradeLumineux
Product Number7648722
Product FamilyS129
Insert Geometry
Depth of Cut Max — mm (APMX)15.88 mm
Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648722
EAN7320760847695
File Type Download

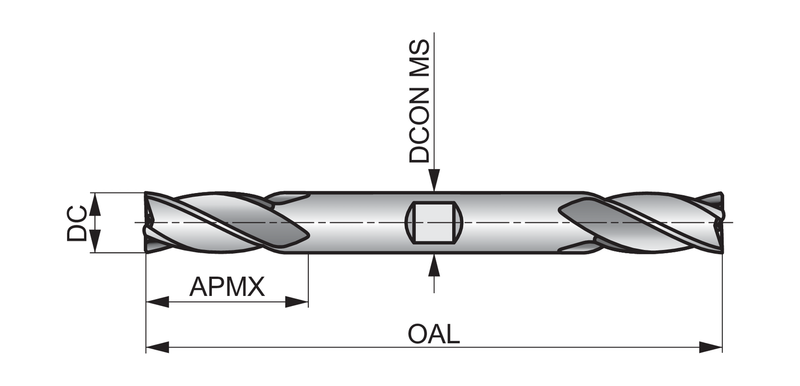

S1291/4 — Line Drawing PDF Download
