S1293/8
S1293/8

S1293/8

UGC DOR7648724
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.19 CAD - $68.19 CAD
$68.19 CAD
$68.19 CAD - $68.19 CAD
$68.19 CAD

Vendu en lots de : 1

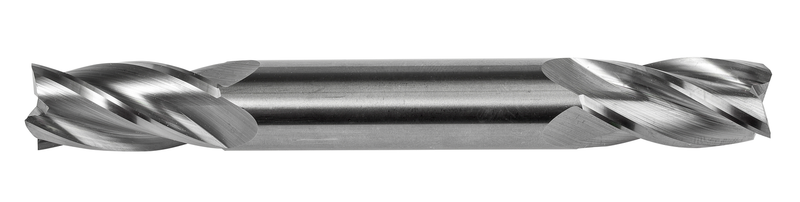

Fraise à quatre dents, double extrémité de longueur normale, diamètre 3/8" avec une longueur de coupe de 3/4" et une longueur totale de 3,1/2", conforme à la norme DORMER avec une queue cylindrique de 3/8", en carbure monobloc à finition brillante, hélice de 30° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, la fonte ductile et la fonte à graphite compacté ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1293/8
GradeLumineux
Product Number7648724
Product FamilyS129

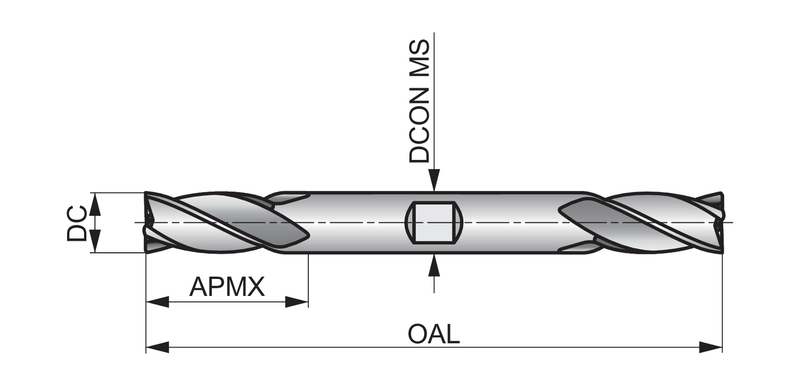

Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)88.9 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648724
EAN7320760847718
File Type Download
S1293/8 — Line Drawing PDF Download
