S1291/2
S1291/2

S1291/2

UGC DOR7648725
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$107.83 CAD - $107.83 CAD
$107.83 CAD
$107.83 CAD - $107.83 CAD
$107.83 CAD

Vendu en lots de : 1

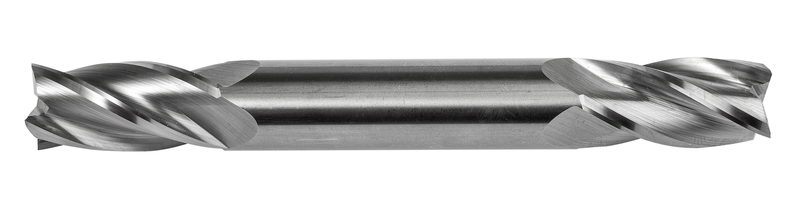

Fraise deux-tailles de longueur normale, 4 dents, diamètre 1/2" avec une longueur de coupe de 1" et une longueur totale de 4", conforme à la norme DORMER, avec une queue cylindrique de 1/2", en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage d'épaulements et de rainures dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, ainsi que le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1291/2
GradeLumineux
Product Number7648725
Product FamilyS129
Insert Geometry
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648725
EAN7320760847725
File Type Download

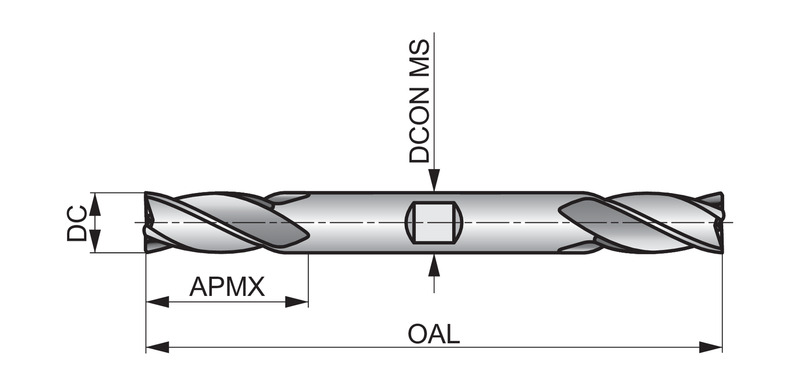

S1291/2 — Line Drawing PDF Download
