S1341/2
S1341/2

S1341/2

UGC DOR7648741
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$65.54 CAD - $65.54 CAD
$65.54 CAD
$65.54 CAD - $65.54 CAD
$65.54 CAD

Vendu en lots de : 1

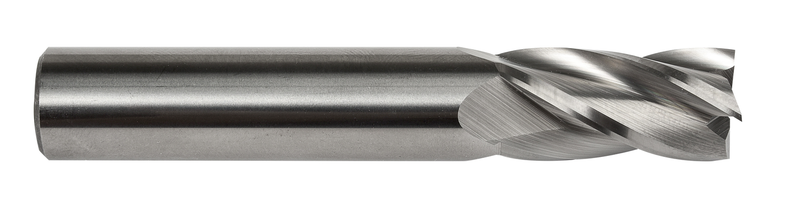

Fraise en bout longueur normale à 4 dents, diamètre 1/2" avec une longueur de coupe de 1" et une longueur totale de 3", selon la norme DORMER avec une queue cylindrique de 1/2", en carbure monobloc finition brillante, hélice 30° pour le fraisage d'épaulement et le plonger dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1341/2
GradeLumineux
Product Number7648741
Product FamilyS134
Insert Geometry
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648741
EAN7320760847886
File Type Download

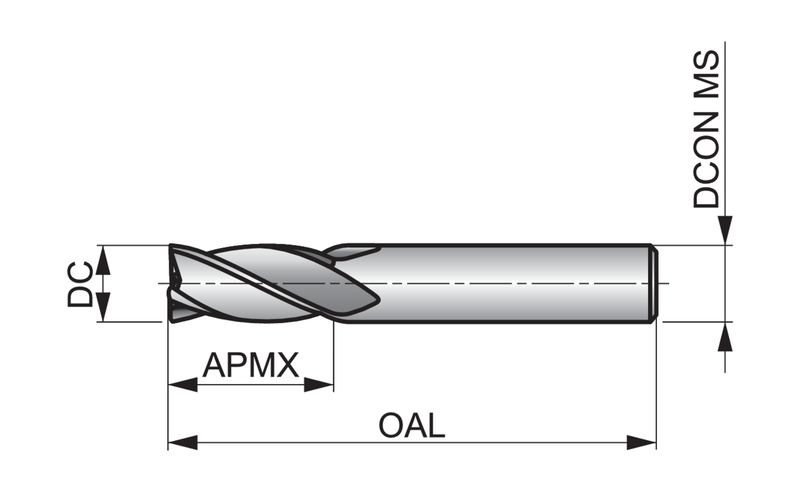

S1341/2 — Line Drawing PDF Download
