S2341/16
S2341/16

S2341/16

UGC DOR7648748
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.16 CAD - $19.16 CAD
$19.16 CAD
$19.16 CAD - $19.16 CAD
$19.16 CAD

Vendu en lots de : 1

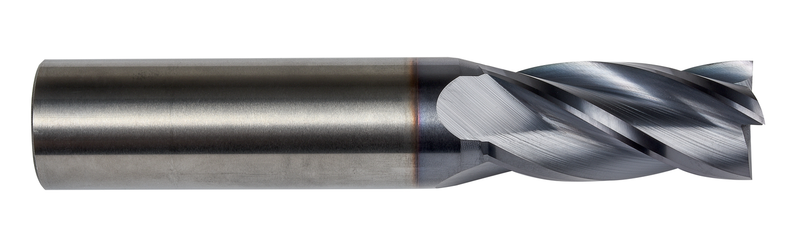

Fraise en bout de longueur normale à 4 dents, diamètre 1/16" avec une longueur de coupe de 1/4" et une longueur totale de 1,1/2", selon la norme DORMER avec une queue cylindrique de 1/8", en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le fraisage d'épaulements et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2341/16
GradeTiAlN
Product Number7648748
Product FamilyS234
Insert Geometry
Depth of Cut Max — mm (APMX)6.35 mm
Dimensions
Cutting Diameter — in (DC)0.0625"
Cutting Diameter — mm (DC)1.59 mm
Cutting Diameter — Fractional1/16
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648748
EAN7320760847954
File Type Download
S2341/16 — Line Drawing PDF Download
