S2347/64
S2347/64

S2347/64

UGC DOR7648751
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.17 CAD - $20.17 CAD
$20.17 CAD
$20.17 CAD - $20.17 CAD
$20.17 CAD

Vendu en lots de : 1

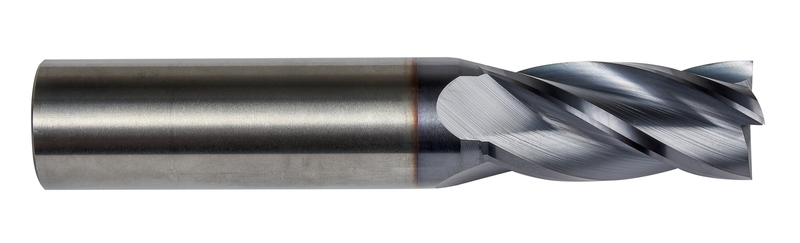

Fraise en bout longueur normale, 4 dents, diamètre 7/64" avec une longueur de coupe de 3/8" et une longueur totale de 1.1/2", selon la norme DORMER avec une queue cylindrique de 1/8", en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le fraisage d'épaulements et en plongée dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2347/64
GradeTiAlN
Product Number7648751
Product FamilyS234
Insert Geometry
Depth of Cut Max — mm (APMX)9.53 mm
Dimensions
Cutting Diameter — in (DC)0.1094"
Cutting Diameter — mm (DC)2.78 mm
Cutting Diameter — Fractional7/64
Overall Length — in (OAL)1.5"
Overall Length — mm (OAL)38.1 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankCylindrical shank
StandardWork Norm
Reference Numbers
EDP Number7648751
EAN7320760847985
File Type Download
S2347/64 — Line Drawing PDF Download
