S2345/16
S2345/16

S2345/16

UGC DOR7648760
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$47.63 CAD - $47.63 CAD
$47.63 CAD
$47.63 CAD - $47.63 CAD
$47.63 CAD

Vendu en lots de : 1

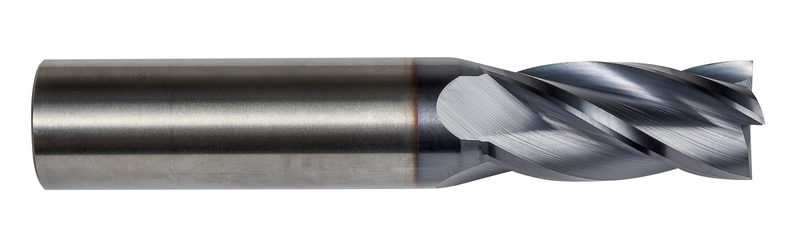

Fraise en bout de longueur normale à 4 dents, diamètre 5/16" avec une longueur de coupe de 7/8" et une longueur totale de 2.1/2", selon la norme DORMER avec une queue cylindrique de 5/16", carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2345/16
GradeTiAlN
Product Number7648760
Product FamilyS234
Insert Geometry
Depth of Cut Max — mm (APMX)22.23 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648760
EAN7320760848074
File Type Download
S2345/16 — Line Drawing PDF Download
