S2343/8
S2343/8

S2343/8

UGC DOR7648761
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.50 CAD - $55.50 CAD
$55.50 CAD
$55.50 CAD - $55.50 CAD
$55.50 CAD

Vendu en lots de : 1

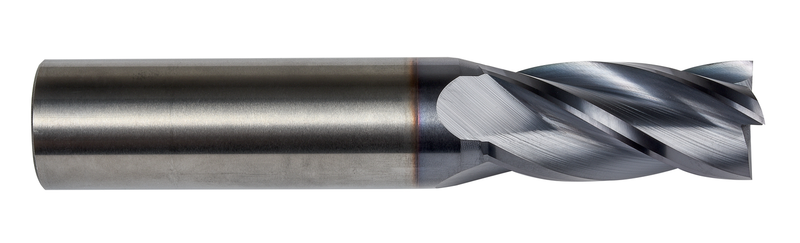

Fraise en bout de longueur standard, 4 arêtes, diamètre 3/8" avec une longueur de coupe de 7/8" et une longueur totale de 2.1/2", conforme à la norme DORMER avec une queue cylindrique de 3/8", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage d'épaulements et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2343/8
GradeTiAlN
Product Number7648761
Product FamilyS234
Insert Geometry
Depth of Cut Max — mm (APMX)22.23 mm
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/8
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648761
EAN7320760848081
File Type Download
S2343/8 — Line Drawing PDF Download
