S2347/16
S2347/16

S2347/16

UGC DOR7648762
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$70.83 CAD - $70.83 CAD
$70.83 CAD
$70.83 CAD - $70.83 CAD
$70.83 CAD

Vendu en lots de : 1

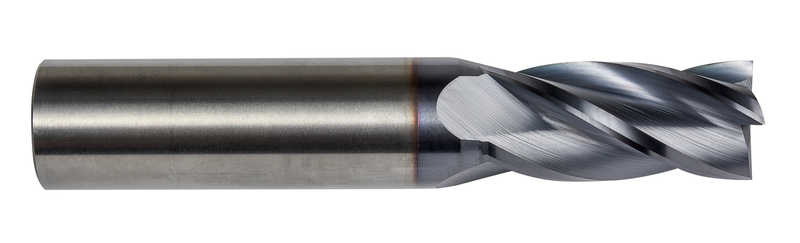

Fraise en bout de longueur normale à 4 cannelures, diamètre 7/16" avec une longueur de coupe de 1" et une longueur totale de 2.1/2", selon la norme DORMER avec une queue cylindrique de 7/16", carbure monobloc avec revêtement TiAlN, hélice de 30° pour le surfaçage en bout et le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2347/16
GradeTiAlN
Product Number7648762
Product FamilyS234
Insert Geometry
Depth of Cut Max — mm (APMX)25.4 mm
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648762
EAN7320760848098
File Type Download
S2347/16 — Line Drawing PDF Download
