S23411/16
S23411/16

S23411/16

UGC DOR7648766
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$253.71 CAD - $253.71 CAD
$253.71 CAD
$253.71 CAD - $253.71 CAD
$253.71 CAD

Vendu en lots de : 1

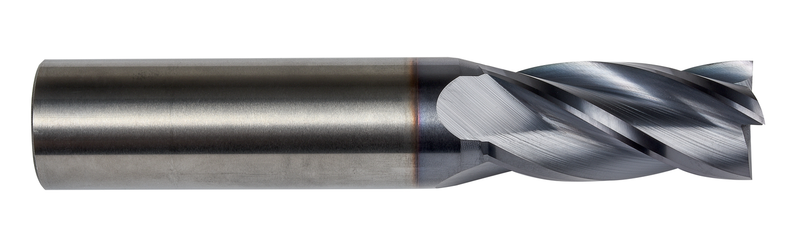

Fraise en bout longueur normale, 4 dents, diamètre 11/16" avec une longueur de coupe de 1.1/2" et une longueur totale de 4", selon la norme DORMER avec une queue cylindrique de 3/4", en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le fraisage d'épaulements et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S23411/16
GradeTiAlN
Product Number7648766
Product FamilyS234
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)0.6875"
Cutting Diameter — mm (DC)17.46 mm
Cutting Diameter — Fractional16/11
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648766
EAN7320760848135
File Type Download
S23411/16 — Line Drawing PDF Download
