S2341
S2341

S2341

UGC DOR7648769
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$337.23 CAD - $337.23 CAD
$337.23 CAD
$337.23 CAD - $337.23 CAD
$337.23 CAD

Vendu en lots de : 1

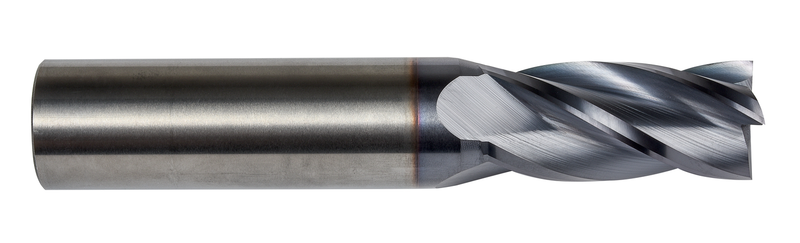

Fraise en bout de longueur normale à 4 dents, diamètre 1" avec une longueur de coupe de 1,1/2" et une longueur totale de 4", selon la norme DORMER avec une queue cylindrique de 1", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2341
GradeTiAlN
Product Number7648769
Product FamilyS234
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648769
EAN7320760848166
File Type Download
S2341 — Line Drawing PDF Download
