S1356.0
S1356.0

S1356.0

UGC DOR7648777
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.53 CAD - $24.53 CAD
$24.53 CAD
$24.53 CAD - $24.53 CAD
$24.53 CAD

Vendu en lots de : 1

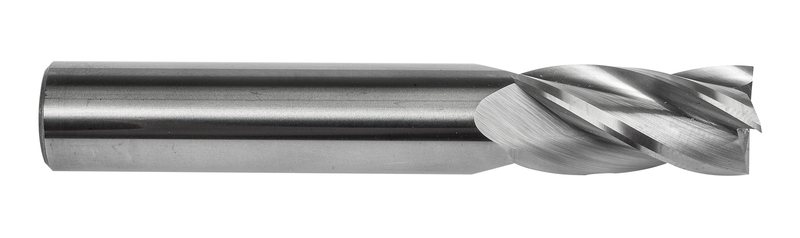

Fraise en bout longueur normale à 4 dents, diamètre 6 mm avec une longueur de coupe de 19 mm et une longueur totale de 63 mm, conforme à la norme DORMER avec une queue cylindrique de 6 mm, carbure monobloc finition brillante, hélice 30° pour le fraisage d'épaulements et l'enfoncement dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1356.0
GradeLumineux
Product Number7648777
Product FamilyS135
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

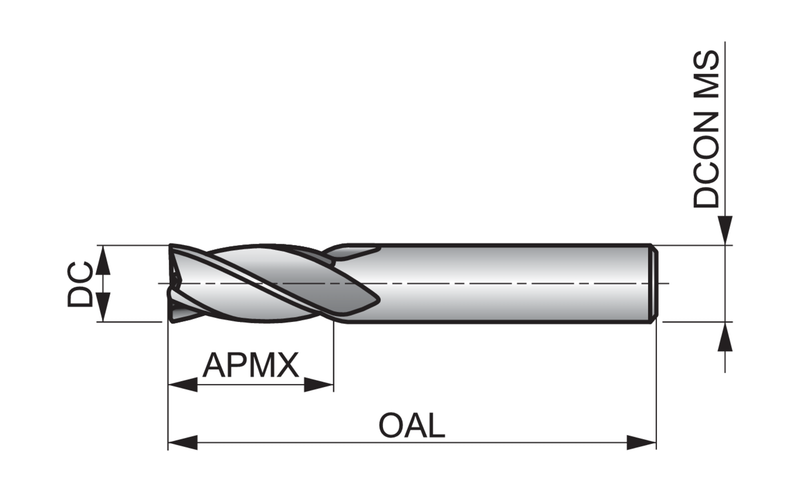

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648777
EAN7320760848241
File Type Download
S1356.0 — Line Drawing PDF Download
