S1361/8
S1361/8

S1361/8

UGC DOR7648807
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.41 CAD - $23.41 CAD
$23.41 CAD
$23.41 CAD - $23.41 CAD
$23.41 CAD

Vendu en lots de : 1

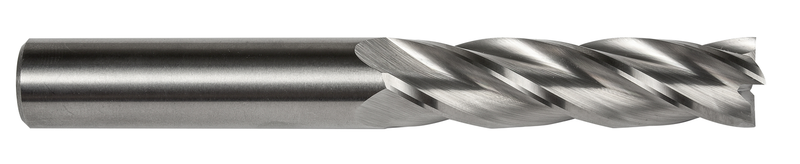

Fraise 4 dents en bout, série longue, diamètre 1/8", longueur de coupe 3/4" et longueur totale 2", selon la norme DORMER avec une queue cylindrique 1/8", en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage d'épaulement et le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1361/8
GradeLumineux
Product Number7648807
Product FamilyS136
Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)2.0"
Overall Length — mm (OAL)50.8 mm
Connection Dia. — in (DCON)0.125"
Connection Dia. — mm (DCON)3.18 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648807
EAN7320760848548
File Type Download

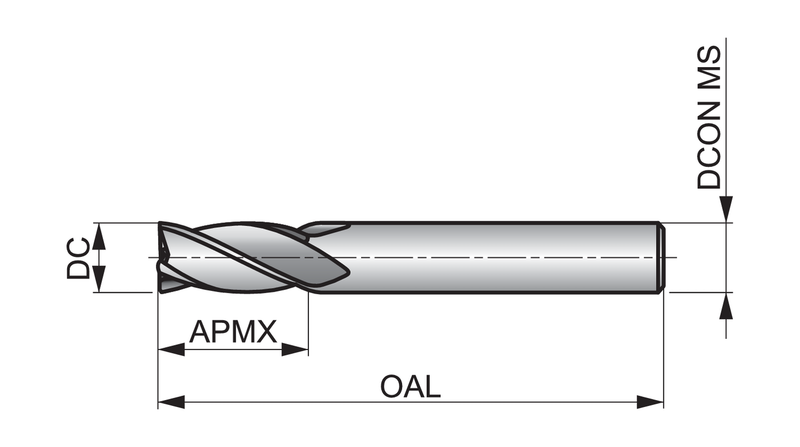

S1361/8 — Line Drawing PDF Download
