S1363/16
S1363/16

S1363/16

UGC DOR7648808
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.57 CAD - $35.57 CAD
$35.57 CAD
$35.57 CAD - $35.57 CAD
$35.57 CAD

Vendu en lots de : 1

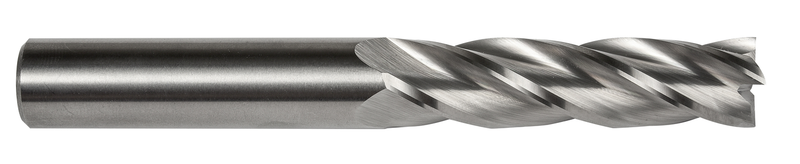

Fraise en bout longue série à 4 dents, diamètre 3/16" avec une longueur de coupe de 3/4" et une longueur totale de 2.1/2", selon la norme DORMER avec une queue cylindrique de 3/16", en carbure monobloc finition brillante, hélice 30° pour le fraisage d'épaulement et le plongeage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1363/16
GradeLumineux
Product Number7648808
Product FamilyS136
Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm

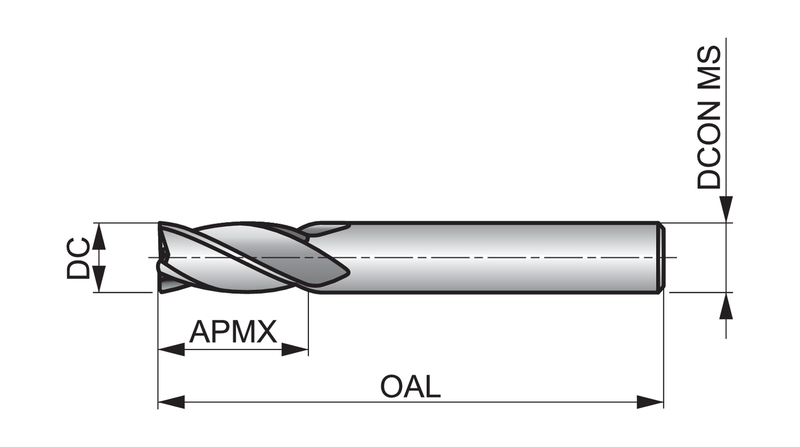

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648808
EAN7320760848555
File Type Download
S1363/16 — Line Drawing PDF Download
