S1365/16
S1365/16

S1365/16

UGC DOR7648810
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$50.11 CAD - $50.11 CAD
$50.11 CAD
$50.11 CAD - $50.11 CAD
$50.11 CAD

Vendu en lots de : 1

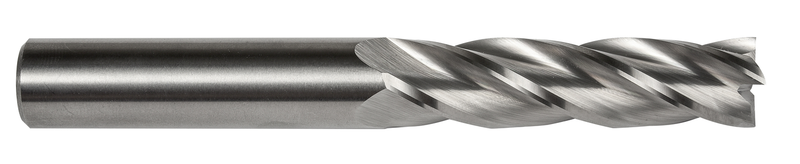

Fraise en bout série longue à 4 dents, diamètre 5/16" avec une longueur de coupe de 1.1/8" et une longueur totale de 3", selon la norme DORMER avec une queue cylindrique de 5/16", en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage d'épaulement et le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1365/16
GradeLumineux
Product Number7648810
Product FamilyS136

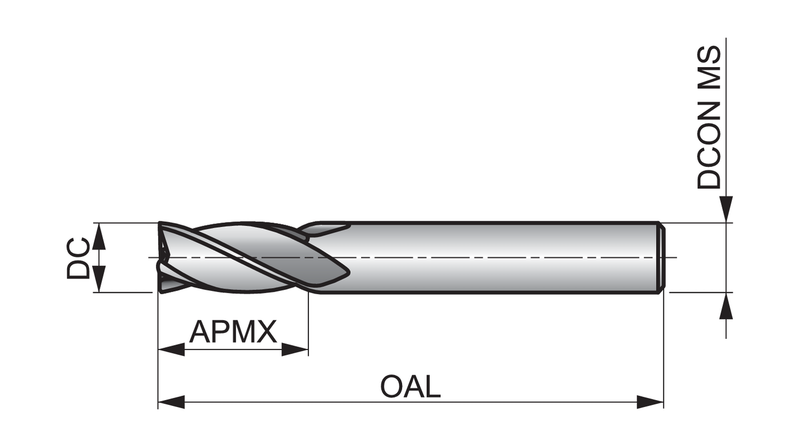

Insert Geometry
Depth of Cut Max — mm (APMX)28.58 mm
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)3.0"
Overall Length — mm (OAL)76.2 mm
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648810
EAN7320760848579
File Type Download
S1365/16 — Line Drawing PDF Download
