S1367/16
S1367/16

S1367/16

UGC DOR7648812
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$98.84 CAD - $98.84 CAD
$98.84 CAD
$98.84 CAD - $98.84 CAD
$98.84 CAD

Vendu en lots de : 1

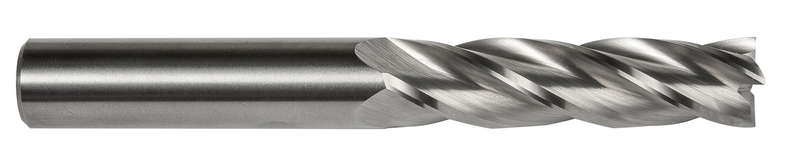

Fraise en bout série longue à 4 dents, diamètre 7/16" avec une longueur de coupe de 2" et une longueur totale de 4", selon la norme DORMER avec une queue cylindrique de 7/16", en carbure monobloc avec finition brillante, hélice de 30° pour l'usinage d'épaulements et le plongée dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1367/16
GradeLumineux
Product Number7648812
Product FamilyS136
Insert Geometry
Depth of Cut Max — mm (APMX)50.8 mm

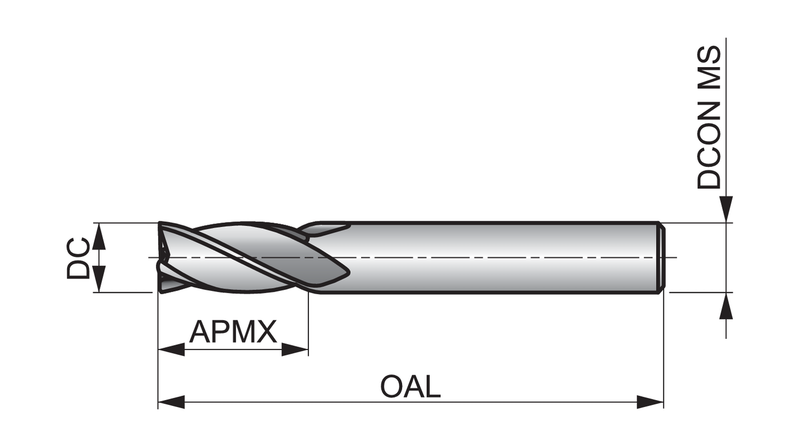

Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankTige cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648812
EAN7320760848593
File Type Download
S1367/16 — Line Drawing PDF Download
