S1361/2
S1361/2

S1361/2

UGC DOR7648813
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.41 CAD - $72.41 CAD
$72.41 CAD
$72.41 CAD - $72.41 CAD
$72.41 CAD

Vendu en lots de : 1

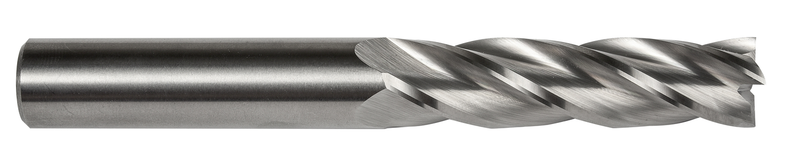

Fraise en bout série longue 4 dents, diamètre 1/2" avec une longueur de coupe de 2" et une longueur totale de 4", selon la norme DORMER avec une queue cylindrique de 1/2", en carbure monobloc finition brillante, hélice de 30° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1361/2
GradeLumineux
Product Number7648813
Product FamilyS136

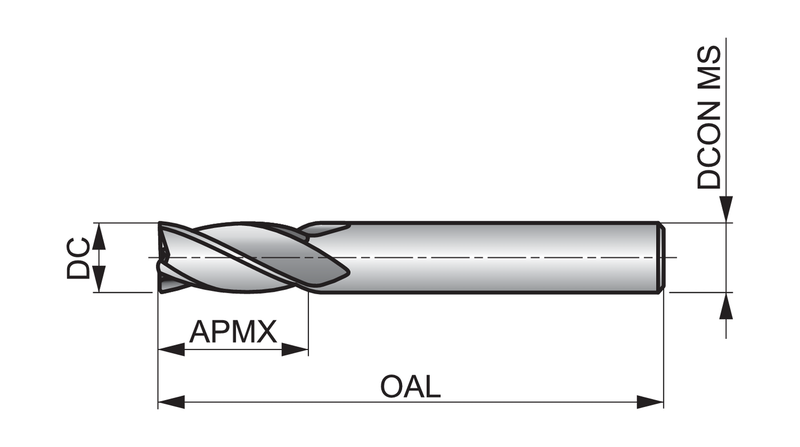

Insert Geometry
Depth of Cut Max — mm (APMX)50.8 mm
Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648813
EAN7320760848609
File Type Download
S1361/2 — Line Drawing PDF Download
