S1363/4
S1363/4

S1363/4

UGC DOR7648815
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$232.57 CAD - $232.57 CAD
$232.57 CAD
$232.57 CAD - $232.57 CAD
$232.57 CAD

Vendu en lots de : 1

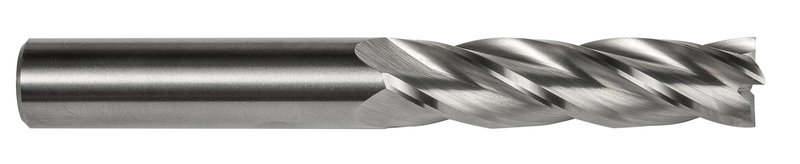

Fraise en bout série longue, 4 dents, diamètre 3/4" avec une longueur de coupe de 2.1/4" et une longueur totale de 5", conforme à la norme DORMER avec une queue cylindrique de 3/4", en carbure monobloc avec finition brillante, hélice de 30° pour le surfaçage et le plongement dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1363/4
GradeLumineux
Product Number7648815
Product FamilyS136

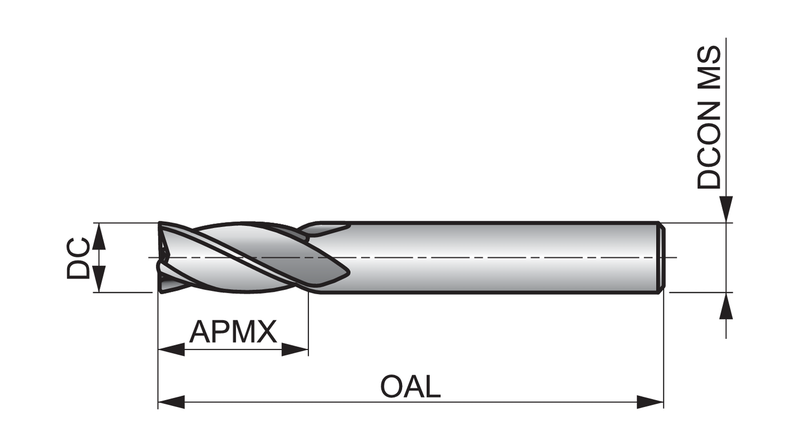

Insert Geometry
Depth of Cut Max — mm (APMX)57.15 mm
Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.05 mm
Cutting Diameter — Fractional3/4
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648815
EAN7320760848623
File Type Download
S1363/4 — Line Drawing PDF Download
