S2363/16
S2363/16

S2363/16

UGC DOR7648817
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.09 CAD - $43.09 CAD
$43.09 CAD
$43.09 CAD - $43.09 CAD
$43.09 CAD

Vendu en lots de : 1

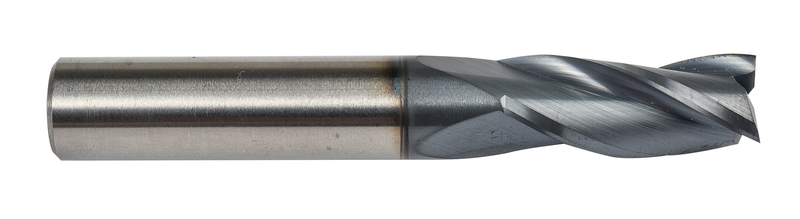

Fraise en bout longue à 4 dents, diamètre 3/16" avec une longueur de coupe de 3/4" et une longueur totale de 2.1/2", selon la norme DORMER avec une queue cylindrique de 3/16", carbure monobloc avec revêtement TiAlN, hélice à 30° pour le fraisage d'épaulements et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2363/16
GradeTiAlN
Product Number7648817
Product FamilyS236

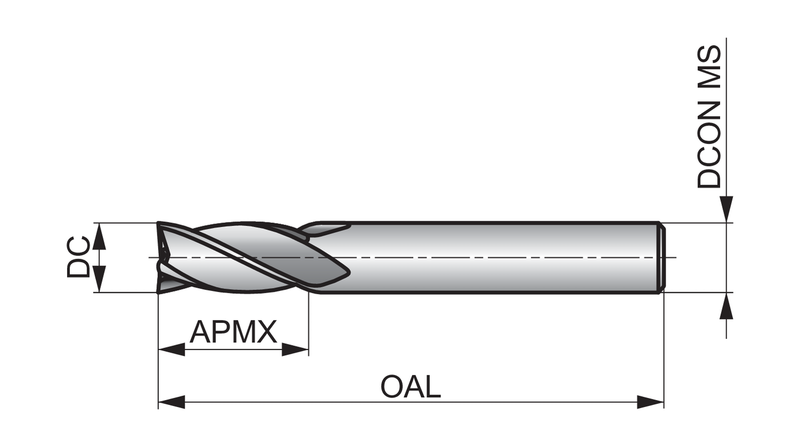

Insert Geometry
Depth of Cut Max — mm (APMX)19.05 mm
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.5"
Overall Length — mm (OAL)63.5 mm
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648817
EAN7320760848647
File Type Download
S2363/16 — Line Drawing PDF Download
