S2365/8
S2365/8

S2365/8

UGC DOR7648823
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$185.00 CAD - $185.00 CAD
$185.00 CAD
$185.00 CAD - $185.00 CAD
$185.00 CAD

Vendu en lots de : 1

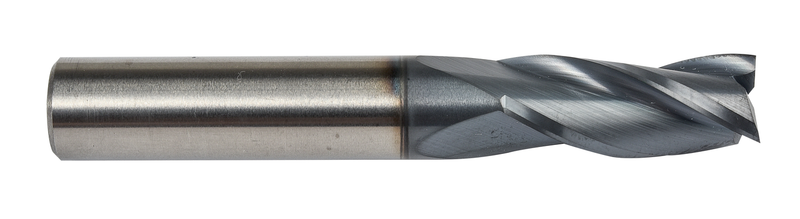

Fraise en bout série longue à 4 dents, diamètre 5/8" avec une longueur de coupe de 2.1/4" et une longueur totale de 5", selon la norme DORMER avec une queue cylindrique de 5/8", en carbure monobloc avec revêtement TiAlN, hélice de 30° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2365/8
GradeTiAlN
Product Number7648823
Product FamilyS236

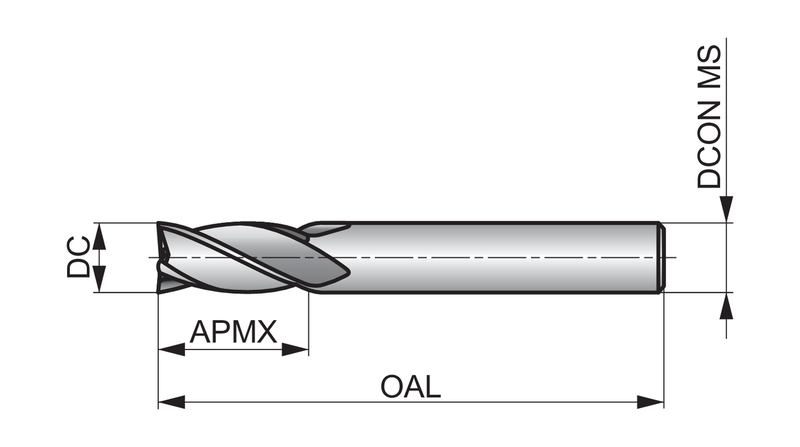

Insert Geometry
Depth of Cut Max — mm (APMX)57.15 mm
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)5.0"
Overall Length — mm (OAL)127.0 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648823
EAN7320760848708
File Type Download
S2365/8 — Line Drawing PDF Download
