S1377/16
S1377/16

S1377/16

UGC DOR7648830
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$118.40 CAD - $118.40 CAD
$118.40 CAD
$118.40 CAD - $118.40 CAD
$118.40 CAD

Vendu en lots de : 1

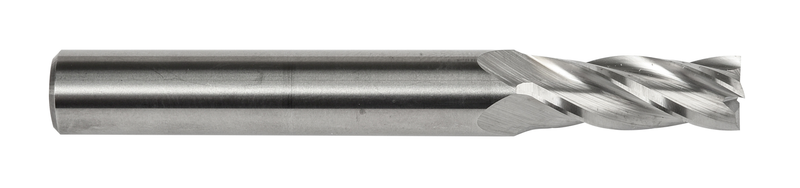

Fraise en bout série extra longue 4 dents, diamètre 7/16" avec longueur de coupe de 3" et longueur totale de 6", selon la norme DORMER avec une queue cylindrique de 7/16", en carbure monobloc avec finition brillante, hélice à 30° pour le fraisage en plongée et en surfaçage dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1377/16
GradeLumineux
Product Number7648830
Product FamilyS137
Insert Geometry
Depth of Cut Max — mm (APMX)76.2 mm

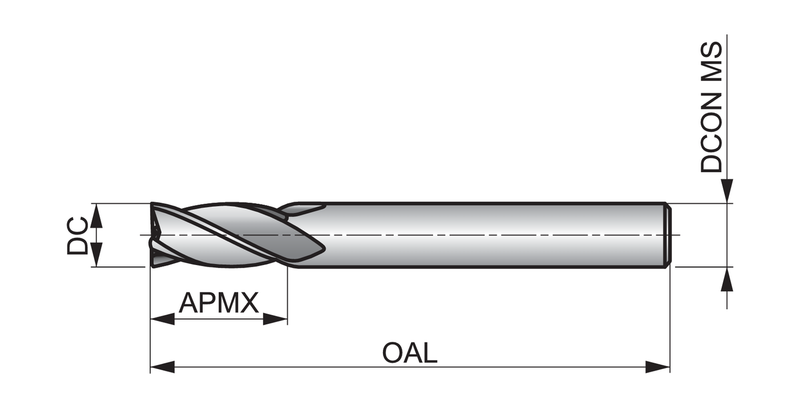

Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648830
EAN7320760848777
File Type Download
S1377/16 — Line Drawing PDF Download
