S1375/8
S1375/8

S1375/8

UGC DOR7648832
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$185.00 CAD - $185.00 CAD
$185.00 CAD
$185.00 CAD - $185.00 CAD
$185.00 CAD

Vendu en lots de : 1

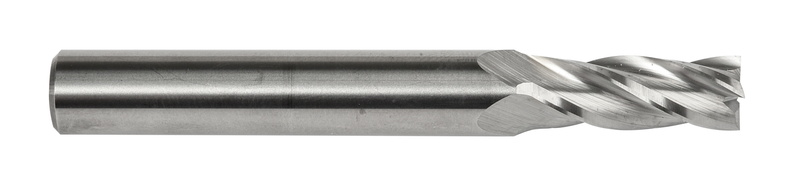

Fraise en bout série extra-longue à 4 dents, diamètre 5/8" avec 3" de longueur de coupe et 6" de longueur totale, selon la norme DORMER avec une queue cylindrique 5/8", en carbure monobloc finition brillante, hélice à 30° pour le fraisage d'épaulements et le plongement dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1375/8
GradeLumineux
Product Number7648832
Product FamilyS137
Insert Geometry
Depth of Cut Max — mm (APMX)76.2 mm
Dimensions
Cutting Diameter — in (DC)0.625"
Cutting Diameter — mm (DC)15.88 mm
Cutting Diameter — Fractional5/8
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)15.88 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648832
EAN7320760848791
File Type Download

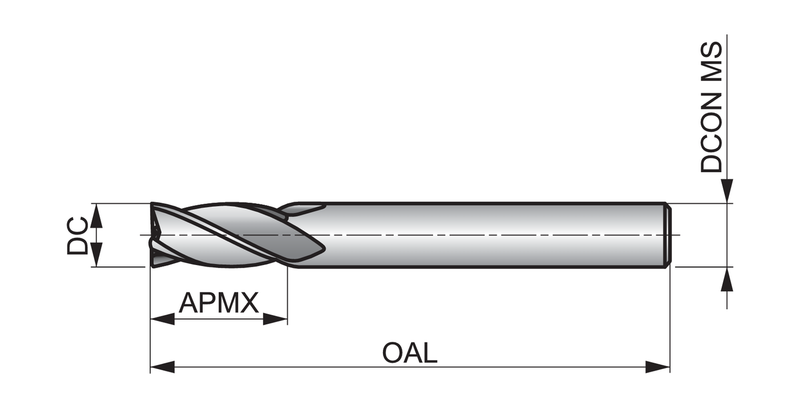

S1375/8 — Line Drawing PDF Download
