S1371
S1371

S1371

UGC DOR7648834
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$523.29 CAD - $523.29 CAD
$523.29 CAD
$523.29 CAD - $523.29 CAD
$523.29 CAD

Vendu en lots de : 1

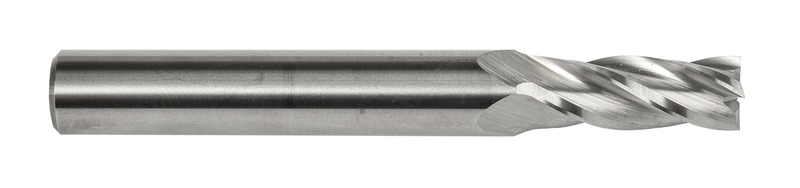

Fraise en bout extra-longue 4 coupes, diamètre 1" avec une longueur de coupe de 3" et une longueur totale de 6", selon la norme DORMER avec une queue cylindrique de 1", en carbure monobloc finition brillante, hélice à 30° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable, la fonte malléable, ductile et à graphite compacté, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S1371
GradeLumineux
Product Number7648834
Product FamilyS137
Insert Geometry
Depth of Cut Max — mm (APMX)76.2 mm
Dimensions
Cutting Diameter — in (DC)1.0"
Cutting Diameter — mm (DC)25.4 mm
Cutting Diameter — Fractional1"
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648834
EAN7320760848814
File Type Download

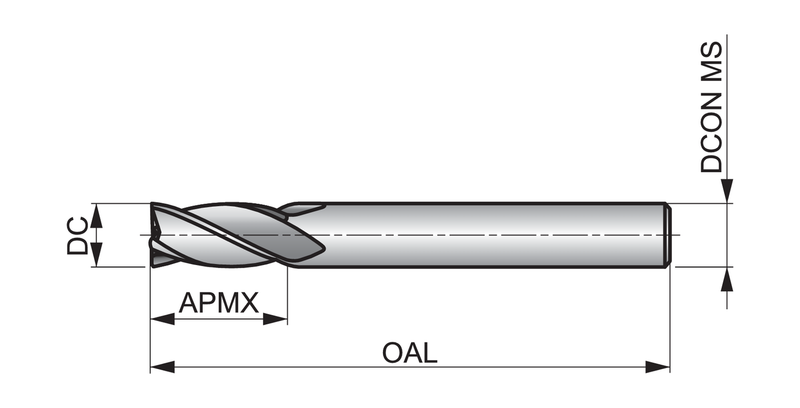

S1371 — Line Drawing PDF Download
