S2371/4
S2371/4

S2371/4

UGC DOR7648837
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$53.91 CAD - $53.91 CAD
$53.91 CAD
$53.91 CAD - $53.91 CAD
$53.91 CAD

Vendu en lots de : 1

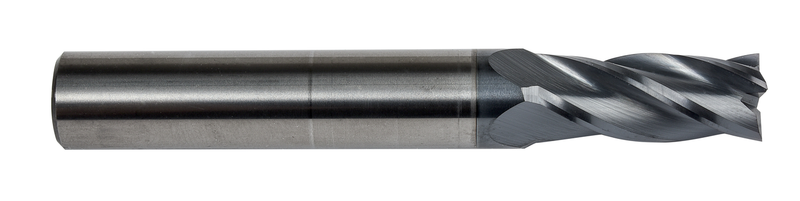

Fraise en bout extra longue, 4 dents, diamètre 1/4" avec une longueur de coupe de 1,1/2" et une longueur totale de 4", selon la norme DORMER avec une queue cylindrique de 1/4", en carbure monobloc avec revêtement TiAlN, hélice à 30° pour le fraisage d'épaulement et le plongement dans l'acier et l'acier moulé, l'acier inoxydable et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2371/4
GradeTiAlN
Product Number7648837
Product FamilyS237
Insert Geometry
Depth of Cut Max — mm (APMX)38.1 mm

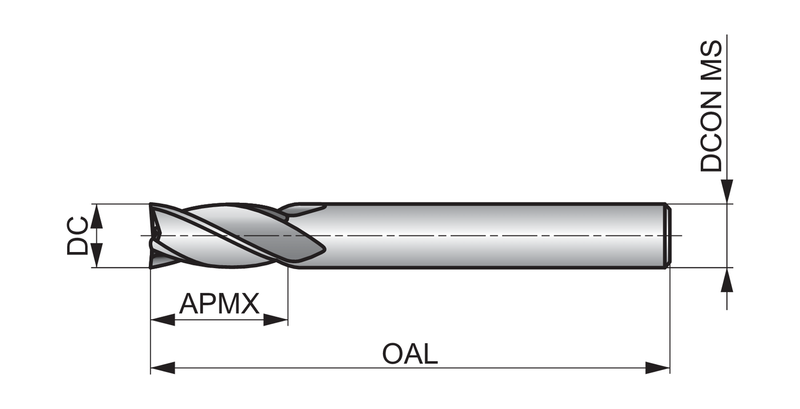

Dimensions
Cutting Diameter — in (DC)0.25"
Cutting Diameter — mm (DC)6.35 mm
Cutting Diameter — Fractional1/4
Overall Length — in (OAL)4.0"
Overall Length — mm (OAL)101.6 mm
Connection Dia. — in (DCON)0.25"
Connection Dia. — mm (DCON)6.35 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique
StandardNorme de travail
Reference Numbers
EDP Number7648837
EAN7320760848845
File Type Download
S2371/4 — Line Drawing PDF Download
